Waste Oil Drums Crusher Compactor , 11kW Motor Hydraulic Press Machine WANSHIDA

Name: Waste Oil Drums Crusher Compactor 11kW Motor Hydraulic Press Machine WANSHIDA
Brand: WANSHIDA
Price: 1 USD

Quality Waste Oil Drums Crusher Compactor , 11kW Motor Hydraulic Press Machine WANSHIDA for sale

Brand Name : WANSHIDA

Model Number : Y82-25

Certification : CE and ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10 sets/month

Delivery Time : 30 days

Packaging Details : Seaworthy packing

Product Name : Drum Press Machine

Compress box size : 790x790x1060mm

Size of baled block(H) : Min. 60mm

Motor : 11kW

Dimensions : 1150x1500x2950mm

Weight : 1800kg

Brand : WANSHIDA

Contact Now

WANSHIDA Hydraulic Waste Oil Drums Crusher Compactor

1. Products:

The Y82-25 Drum Crusher is a compact electro hydraulically operated 208L barrel press. And the compressed height is Min. 60mm. With its 30 Tons pressing force, this machine is suitable for both light steel drums, or rolling hoop barrels, any residual fluids discharge during compaction are collected in a 30-liter collection tank, which can be drained easily through an integral tap.

Y82-25 Used Drum Crusher is used to compress 200L steel drums.
And the compressed height is Min. 60mm.

2. The technical parameters:

SN.	Name and Content of Parameter			Remark
1	Main Hydraulic CYLD	Type	YG125/80-1000
		Max.Push force	250 kN	25 ton
		Stroke	1000 mm
2	Compress box size(L × W × H)		790 × 790 × 1060 mm
3	Size of baled block(H)		Min. 60 mm
4	Hydraulic system pressure		21 MPa
5	Electromotor	Type	Y 160M -4
		Power	11 kW
		Rated speed	1460 rpm
6	Oil pump	Type	40YCY14-1B
		Nominal discharge	40 ml/r
		Nominal pressure	31.5 MPa
7	Overall size(L × W × H)		1150 × 1500 × 2950mm
8	Weight		1800kg

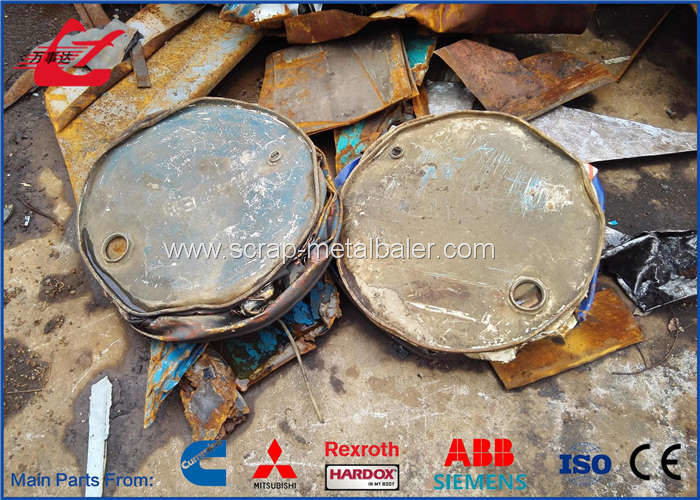

3. Photos:

Waste Oil Drums Crusher Compactor , 11kW Motor Hydraulic Press Machine WANSHIDA
